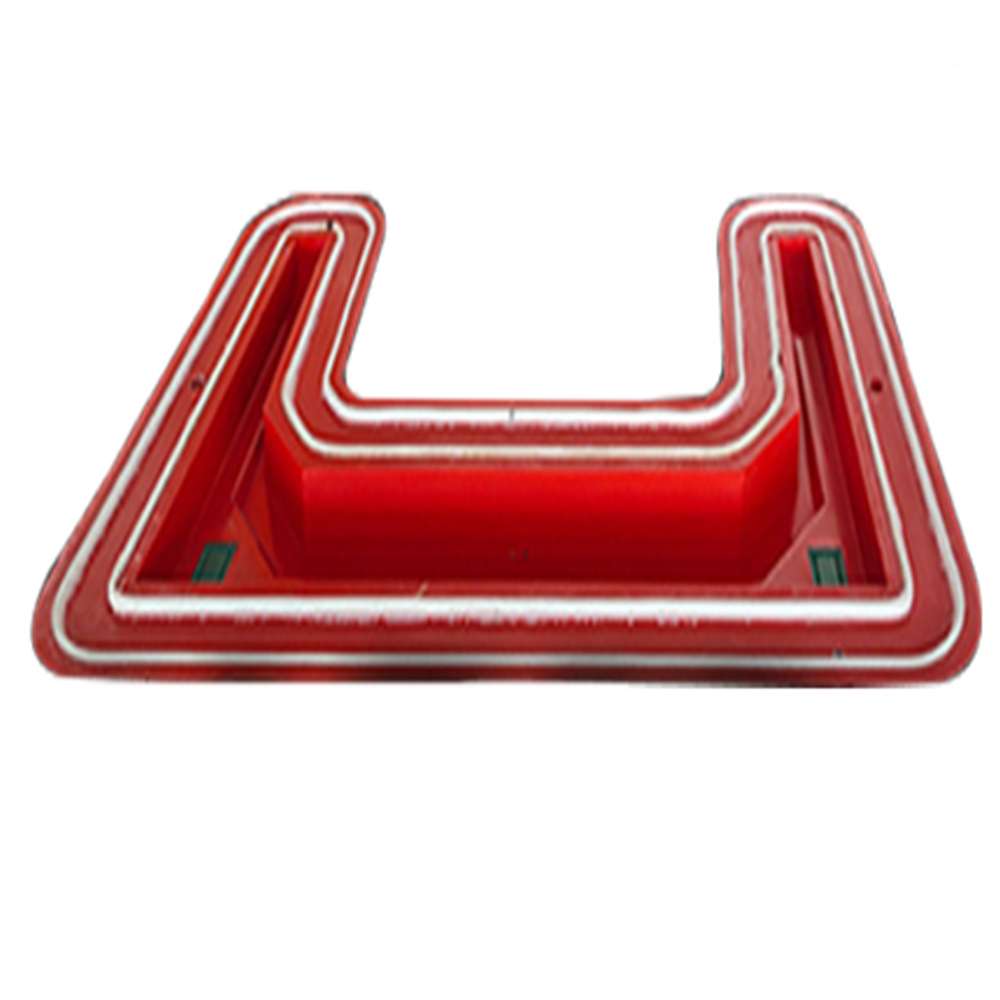

Wing Panel Mold For HP-RTM Tooling

“Wing Panel Mold: Design, Manufacturing, and Advant”Wing Panel RTM Mold: Design, Manufacturing, and Advantages for Aerospace Industry”

In the aerospace industry, wing panel RTM molds have become an essential tool for manufacturers due to their durability, precision, and cost-effectiveness. In this post, I will explain how wing panel RTM molds are designed and manufactured, and what are the advantages of using plastic over other materials for both manufacturers and

What is HP-RTM Tooling

RTM is a manufacturing process used to produce high-quality composite parts for various industries, including aerospace, automotive, and sports equipment. The HP-RTM tooling includes machines, molds, heating systems, and other components that work together to ensure the successful production of RTM parts. These tools are known for their precision, reliability, and ability to handle complex part designs.

How is Wing Panel RTM Mold For HP-RTM Tooling？

• RTM mold is a tool used in the resin transfer molding (RTM) process to manufacture composite parts with high strength and durability. The mold is designed to shape the resin around fiberglass or carbon fiber reinforcement materials to form the desired part.
• To ensure that the Wing Panel RTM Mold for HP-RTM tooling is of good quality, it should be made from durable materials that can withstand the high temperatures and pressures involved in the RTM process. In addition, it should be designed for easy cleaning and maintenance to extend its lifespan. Furthermore, the mold should be able to produce parts with consistent dimensions and surface finishes to meet the specified technical requirements.

Why is Wing Panel RTM Mold For HP-RTM Tooling？

Wing Panel RTM Mold is designed for HP-RTM tooling because it is specifically manufactured to meet the needs of the HP-RTM process. The HP-RTM process involves injecting resin into a mold and then allowing it to cure under heat and pressure. The Wing Panel RTM Mold is designed to withstand these conditions and produce high-quality composite parts. Additionally, the mold is designed to be easy to use and maintain, making it a popular choice for manufacturers who use the HP-RTM process.

Examples of Wing Panel RTM Mold For HP-RTM Tooling？

• Aircraft Wing Panel: The wing panel RTM mold is commonly used in the a1. Aircraft Wing Panel: The wing panel RTM mold is commonly used in the aerospace industry to manufacture aircraft wings. The mold is designed to produce large, complex shapes with high precision and accuracy.
• Automobile Body Panel: The RTM mold is also used in the automotive industry to manufacture body panels such as doors, hoods, and fenders. The mold is designed to produce parts with smooth surfaces and tight tolerances.
• Electrical Enclosure: The RTM mold is used to manufacture electrical enclosures that protect sensitive electronic components from environmental factors such as moisture, dust, and vibration. The mold is designed to produce parts with precise dimensions and tight tolerances.
• Medical Device Casing: The RTM mold is used to manufacture medical device casings such as pacemakers and insulin pumps. The mold is designed to produce parts with high precision and accuracy, ensuring that the device functions properly and safely.
• Household Appliance Parts: The RTM mold is used to manufacture various parts for household appliances such as refrigerators, washing machines, and air conditioners. The mold is designed to produce parts with complex shapes and tight tolerances, ensuring that the appliance functions properly and efficiently.

Manufacturing of a composite wing with internal structure in one cure cycle
