SMC Mold Temperature Control: Heaters, Zones & Uniformity

SMC molding happens at 140–160°C — hot enough to cure the thermoset resin in 2–5 minutes, cool enough to avoid degrading the material. Holding the entire cavity surface within ±3°C of the setpoint is what separates a mold that produces consistent parts from one that fights warpage, porosity, and incomplete cure. Temperature control is not a plumbing detail — it is the primary process variable that determines part quality. This deep dive covers the engineering of SMC mold heating systems.

What Is Mold Temperature Control — Thermal Engineering Principles

The SMC cure reaction is exothermic — it generates heat as the polyester resin crosslinks. If the mold is too cold at the start of the cycle, the SMC charge does not flow properly and may not fully fill the cavity. If the mold is too hot, the resin cures before the charge has fully flowed, creating knit lines and internal porosity. If the temperature varies across the cavity, the part cures unevenly — sections that cure last shrink differently from sections that cured first, causing warpage that appears hours or days after demolding.

The ideal temperature profile has three characteristics: (1) the mold surface is at the target temperature (±3°C) before the charge is placed, (2) the temperature recovers within 15–30 seconds of the cold charge being placed in the hot mold, and (3) the temperature distribution across the cavity is uniform enough that all sections of the part reach full cure within 30 seconds of each other. Achieving this requires careful heater placement, adequate heater power, and responsive temperature control.

Performance Data — Heat Transfer in SMC Molds

A typical SMC mold requires 15–25 kW of heating power per square meter of projected area. The heaters must deliver this power while maintaining a surface temperature of 140–160°C with ±3°C uniformity. The thermal conductivity of the mold steel is the limiting factor — P20 tool steel has a thermal conductivity of approximately 29 W/mK, meaning a temperature difference of 3°C between two points 50 mm apart requires a heat flux of about 1,700 W/m². In practice, this means that heaters spaced more than 75 mm apart create detectable temperature variations on the cavity surface.

Cartridge heaters are the most common heating method. A typical 12.5 mm diameter cartridge heater delivers 400–800 W at 240V, with a watt density of 15–30 W/cm². The heater is inserted into a reamed hole in the mold plate with 0.05–0.10 mm diametral clearance — enough for thermal expansion but tight enough for good heat transfer. A loose-fitting heater in an oversized hole has an air gap that acts as a thermal insulator, causing the heater to run 50–100°C hotter than the mold steel and reducing its service life from years to months.

Manufacturing Process — Heater Layout and Zoning

Cartridge heater layout follows a simple principle: the distance from the heater centerline to the cavity surface should be as uniform as possible across the entire part. A distance of 40–60 mm is standard, with a maximum of 75 mm. Heaters are placed parallel to the cavity surface, oriented along the long dimension of the part to minimize the number of heaters required. The spacing between adjacent heaters should be 60–90 mm, calculated to produce less than 5°C temperature variation between heaters at steady state.

For molds with significant wall thickness variation, zoned heating is essential. The mold is divided into independently controlled heating zones — typically 4–12 zones for an automotive-size mold — with each zone having its own thermocouple and temperature controller. Thick sections (where the SMC takes longer to heat through) run at slightly higher temperatures. Thin sections run cooler to prevent overcure and brittleness. The zone boundaries should be placed at natural thermal divisions — changes in part thickness, the edge of the cavity, and wherever the distance from heater to cavity surface changes by more than 10 mm.

Application Spectrum — Oil Heating as an Alternative

Oil heating circulates hot oil (typically 160–200°C) through drilled channels in the mold plates. Oil heating provides inherently more uniform temperature distribution than cartridge heaters because the entire channel surface is at the oil temperature. The temperature variation across the cavity surface with well-designed oil channels is typically ±1.5°C — roughly half the variation of cartridge heaters. This makes oil heating the preferred choice for Class A surface parts, thin-walled parts sensitive to temperature variation, and molds running high-volume production where temperature stability directly affects cycle time consistency.

The downside of oil heating is complexity and cost. An oil temperature control unit (TCU) costs $5,000–15,000 per zone and requires pumps, expansion tanks, and insulated transfer lines. Startup time is longer — the oil must be heated from ambient to operating temperature, typically taking 30–60 minutes compared to 10–20 minutes for electric heaters. And oil leaks, while rare in a well-maintained system, are a fire hazard on a mold running at 150°C.

Limitations and When to Upgrade

Cartridge heaters are the right choice for most SMC molds up to 2,000 tons press capacity. They are simpler, cheaper, and easier to maintain than oil heating. Their temperature uniformity (±3–5°C) is adequate for industrial parts and most non-Class A automotive parts. Upgrade to oil heating when: (1) the part has Class A painted surfaces requiring ±2°C or better uniformity, (2) the part wall thickness varies by more than 3:1 (e.g., 2 mm to 8 mm), requiring precise zoned control, or (3) the production volume exceeds 50,000 parts per year, where the faster thermal recovery of oil heating can reduce cycle time by 10–15 seconds per cycle.

Heating System Comparison

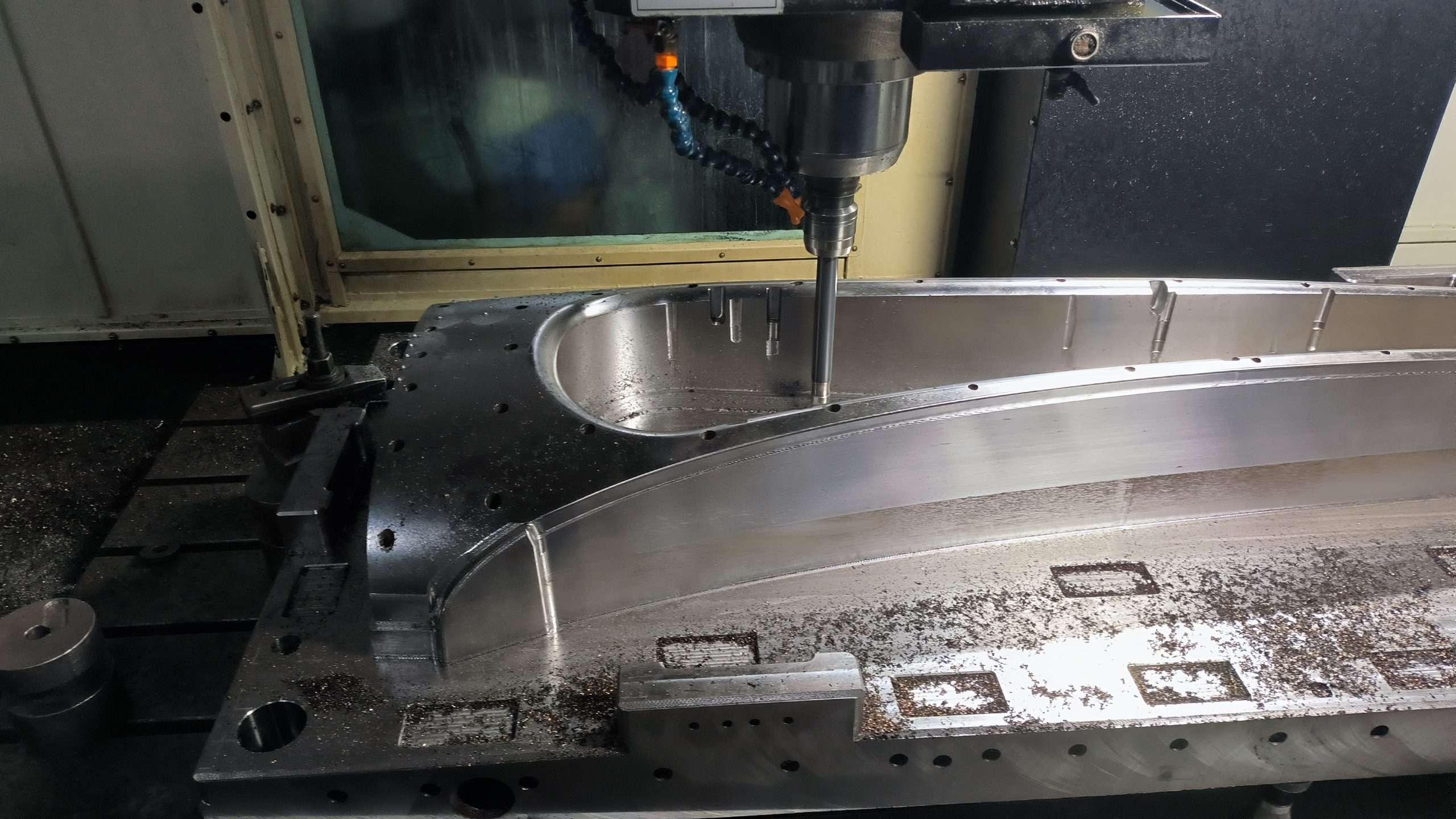

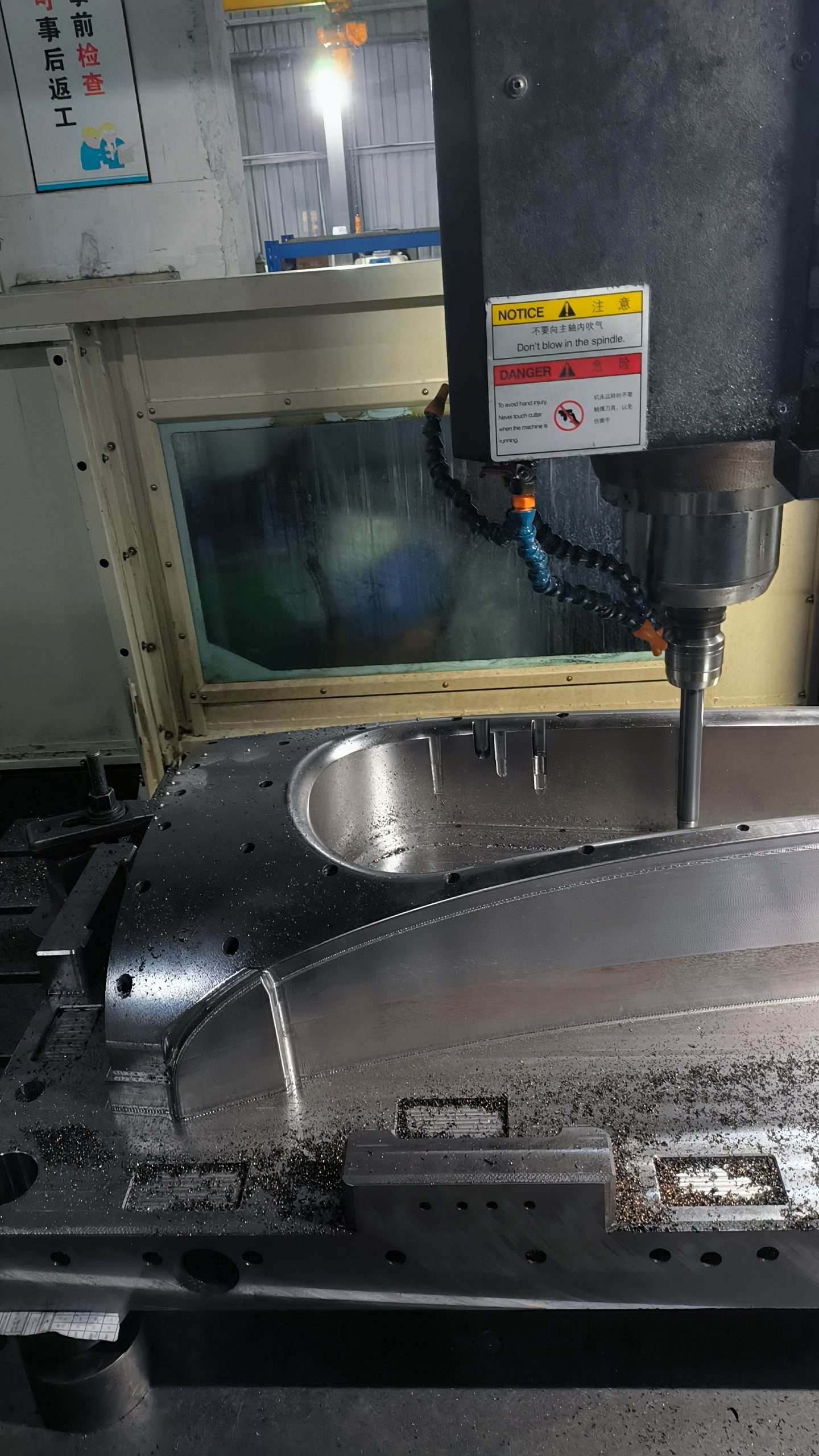

TSTAR Mold designs and builds SMC molds with cartridge heater or oil heating systems based on your part quality and production volume requirements. In-house thermal FEA simulation to optimize heater placement and verify temperature uniformity before cutting steel.
