An SMC compression mold at 140°C is thermally aggressive to the material inside it. The SMC charge lands on a hot cavity surface, and within the first thirty seconds of mold closure, the resin viscosity drops and the material flows to fill the cavity. After flow stops, crosslinking accelerates—and every 10°C increase in mold temperature roughly doubles the cure reaction rate, until the part reaches sufficient conversion to be ejected. The cooling system—or more accurately, the heating-and-cooling system, since SMC molds are heated to cure the thermoset—is what controls this entire sequence. A well-designed temperature control system produces parts that cure uniformly across the cavity, eject without warping, and cycle in the minimum possible time. A poorly designed system produces parts that are over-cured on the hot side and under-cured on the cold side, warped from differential shrinkage, and cycled slowly because the slowest point on the cavity controls when the part can be ejected. This article covers the engineering of SMC mold temperature control: water versus oil as the heating medium, channel placement and spacing, flow rate and Reynolds number requirements, and the common design mistakes that show up as quality problems at tryout.
| Parameter | Pressurized Water | Thermal Oil |
|---|---|---|
| Max operating temperature | ~200°C (at 15 bar) | ~300°C (near atmospheric) |
| Heat transfer efficiency | Excellent — high thermal conductivity and specific heat | Moderate — roughly half the heat transfer of water |
| Reynolds number (10mm channel, typical flow) | Re 8,000-15,000 (turbulent) | Re 2,000-5,000 (transitional) |
| Safety concern | Steam flash if leak at >100°C | Oil leak = slip and fire hazard |
| Best for | Polyester SMC (135-150°C) | Epoxy SMC (160-180°C) |
Water vs Oil: The First and Most Consequential Decision
The choice between pressurized water and thermal oil as the mold heating medium determines the maximum operating temperature, the heat transfer efficiency, the system cost, and the safety requirements. Pressurized water systems operate at 160-200°C, requiring system pressure of 6-15 bar to keep the water liquid. They provide excellent heat transfer—water’s thermal conductivity and specific heat capacity are roughly double those of thermal oil, which means water delivers more heat per unit time through the same channel diameter. The practical limit for pressurized water is about 200°C—at 220°C the system pressure exceeds 23 bar and the equipment cost escalates sharply. Thermal oil systems operate at temperatures up to 300°C at near-atmospheric pressure, making them the default for high-temperature SMC formulations (epoxy-based SMC curing at 160-180°C). The tradeoff is heat transfer efficiency: oil’s lower thermal conductivity and higher viscosity mean lower Reynolds numbers in the cooling channels for the same pump power. For most standard polyester SMC formulations molding at 135-150°C, pressurized water is the better choice—lower cost, better heat transfer, safer (oil leaks are a slip and fire hazard). For epoxy SMC above 160°C, thermal oil is the practical choice despite its disadvantages, because the pressure required to keep water liquid at those temperatures makes the system uneconomical.

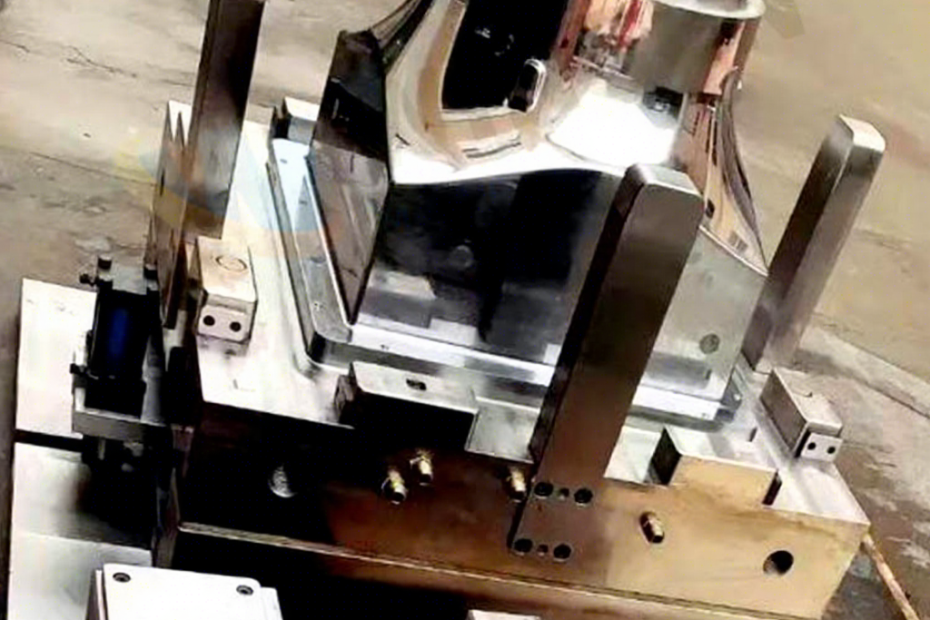

Channel Layout: Spacing, Diameter, and Distance to Cavity
The cooling/heating channels in an SMC mold serve one function: maintain the cavity surface at a uniform temperature, typically within ±3°C of the setpoint, during production. Achieving this requires channels that are close enough to the cavity surface to transfer heat effectively, spaced closely enough to eliminate cold spots between channels, and sized to achieve turbulent flow at the available pump pressure. The three governing design parameters: distance from channel centerline to cavity surface (standoff distance), channel-to-channel pitch (centerline spacing), and channel diameter. Standoff distance: the closer the channel is to the cavity surface, the better the heat transfer—but the higher the stress in the mold steel between the channel and the cavity. The standard rule is a minimum standoff of 1.5-2× the channel diameter, with 2-2.5× being more conservative for production molds that will see millions of cycles. A 10mm-diameter channel should be at least 20-25mm from the cavity surface. Channel pitch: the centerline-to-centerline distance between adjacent channels determines the temperature uniformity on the cavity surface. The standard rule is a pitch of 3-5× the channel diameter. For a 10mm channel with a standoff of 20mm, a 40mm pitch gives acceptable uniformity (±3°C). Tighter pitch (3×) gives better uniformity at higher machining cost. Wider pitch (6×+) creates measurable cold spots between channels that show up as under-cured regions on the part. Channel diameter: 8-12mm is standard for SMC molds up to about 1m² cavity area. Larger molds need larger channels (12-16mm) or more parallel circuits to deliver sufficient flow. The critical hydraulic requirement is turbulent flow—Reynolds number above 4,000—in every channel. Laminar flow creates a stagnant boundary layer at the channel wall that acts as thermal insulation between the fluid and the mold steel. Turbulent flow continuously breaks up this boundary layer, improving heat transfer by a factor of three to five. If your mold temperature controller can’t deliver enough flow to achieve Re > 4,000 in every channel, increase the pump pressure, reduce the channel diameter (at the cost of higher pressure drop), or split the circuit into shorter parallel paths.

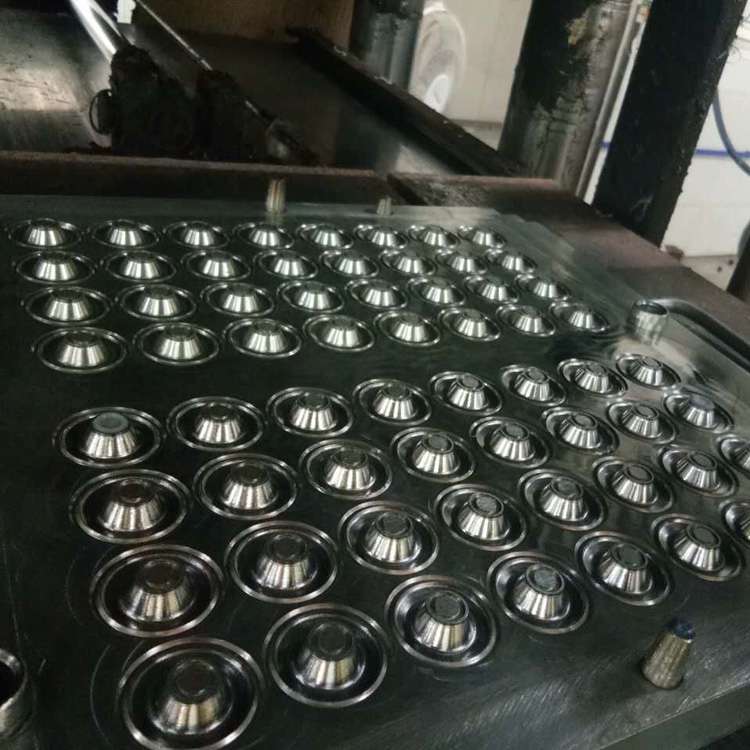

Circuit Design: Series vs Parallel, and Why It Matters
The simplest cooling circuit design is a single series path: fluid enters at one point, flows through all the channels in sequence, and exits at another point. Series circuits are self-balancing—the same flow rate goes through every channel—but the fluid temperature rises as it picks up heat along the path, so the inlet side of the mold runs cooler than the outlet side. For a mold fed with 140°C water and a 10°C temperature rise across the circuit, the inlet side of the cavity sees 140°C while the outlet side sees 145-147°C (accounting for the mold steel’s thermal resistance). This 5-7°C temperature gradient across the cavity produces measurable differential cure and differential shrinkage—the classic cause of warped parts that curl toward the hotter side. The fix is parallel circuits: split the flow into multiple shorter paths, each with the same inlet temperature. A mold with four parallel circuits sees a 2-3°C temperature rise across each circuit instead of 10°C across a single long circuit. The catch is that parallel circuits require flow balancing—the path with the lowest pressure drop gets the most flow, and the path with the highest pressure drop may get insufficient flow to maintain turbulence. Balancing is done by adjusting circuit lengths, adding restrictors, or using a manifold with individual flow controls per circuit. A well-designed SMC mold cooling system uses parallel circuits with balanced flow, delivering the same inlet temperature and the same flow rate (and therefore the same heat transfer) to every zone of the cavity. This is the standard for production molds that need to hold ±3°C across the cavity. For smaller prototype molds or molds with simple geometries, a single series circuit may be acceptable—but understand that the temperature gradient is there, and it will show up in the parts if the gradient exceeds about 5°C across the cavity.
Common Design Mistakes That Show Up at Tryout
The cooling system is the hardest mold system to modify after the mold is built. You can add steel to a cavity (welding) and re-machine it. You can polish a rough surface. You can adjust the shear edge. But cooling channels are drilled deep in the mold steel, and once they’re there, they cannot be moved without scrapping the mold plate. This makes cooling system design mistakes disproportionately expensive. The most common mistake is placing cooling channels on only one side of the cavity—typically in the core, with no channels in the cavity half, because the part geometry made it easier to drill the core. The result is a cavity surface that’s 5-15°C cooler than the core surface, parts that stick to the hotter side on ejection, and differential cure that warps the part toward the cold side. Both mold halves need temperature control. Full stop. The second most common mistake is insufficient flow: the mold temperature controller’s pump is sized for the total pressure drop of the circuit, but the circuit itself has long series paths with small diameters that choke the flow to below the turbulent transition. The symptom is a mold that takes too long to heat up, parts that are under-cured when ejected (low Barcol hardness), and cycle times that are 20-30% longer than expected. The fix is to design the circuit’s pressure drop at the target flow rate, confirm the pump can deliver that flow, and if not, increase channel diameters or split into more parallel paths. The third most common mistake is placing cooling channels too close to the cavity edge, where the reduced steel thickness creates a hot spot at the edge of the part and a cold spot in the adjacent wall of the cavity. The result is a part that’s over-cured at the edges (discolored, brittle) and under-cured in the adjacent wall. Maintain the minimum standoff distance everywhere—including at the cavity edges, where the temptation to get the channel close to improve cooling is strongest.
