Plastic Injection Mold: Design, Steel Selection & Cost Guide

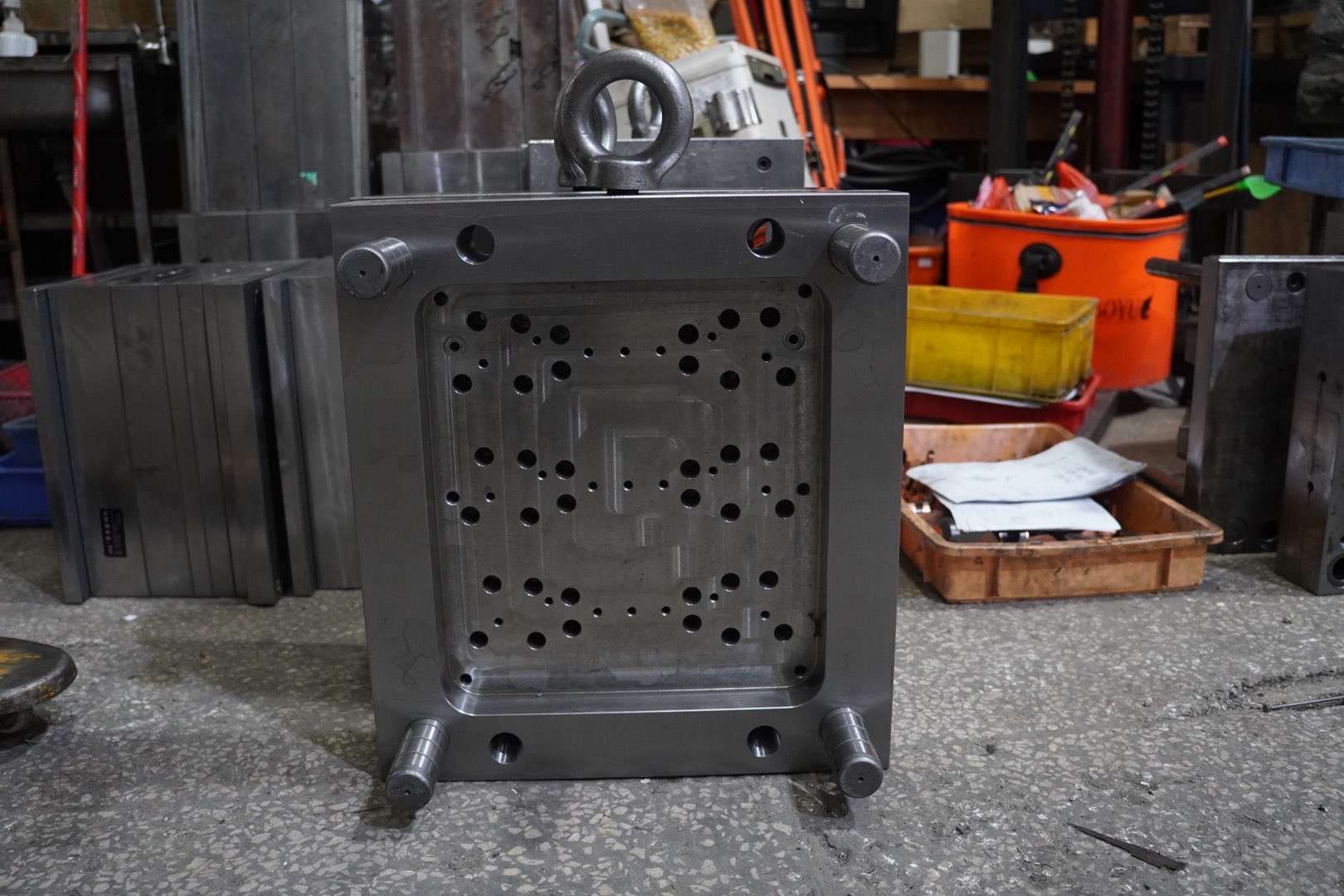

An injection mold is a precision tool that shapes molten plastic into the parts you use every day — car bumpers, phone cases, medical syringes, appliance housings. A well-designed mold runs millions of cycles with micron-level precision. A poorly designed one produces scrap from day one. This guide covers what separates the two.

Steel Selection: The Foundation of Mold Life

The choice of mold steel determines cycle life, maintenance interval, and part quality. P20 pre-hardened steel (28–32 HRC) is the industry standard for prototype and low-volume tools up to 100,000 cycles. It machines easily and polishes to a good finish, keeping tooling costs low.

For production tools targeting 300,000–1,000,000 cycles, H13 hot work steel hardened to 46–50 HRC is the standard. H13 maintains hardness at elevated temperatures — critical for engineering resins like PEEK and PPS that process at 350°C and above. The trade-off is machinability: H13 takes roughly twice as long to machine as P20, adding 15–25% to tool cost.

For the highest-volume applications — caps, closures, medical disposables exceeding 1 million cycles per year — Stavax or 420 stainless steel at 50–54 HRC provides the best combination of wear resistance and corrosion protection. The polished surface holds a mirror finish through millions of cycles, essential for optical and medical parts.

Gate Design: Where the Plastic Enters

The gate is the small orifice where molten plastic enters the mold cavity. Gate location, size, and type determine fill pattern, weld line position, and part strength. Edge gates work for most general-purpose parts. Fan gates spread the flow for wide, thin parts. Submarine gates automatically shear from the part during ejection, eliminating a secondary degating operation.

Hot runner systems keep the plastic molten in the feed system between shots, eliminating runner scrap. The upfront cost is higher — $3,000–15,000 per drop depending on complexity — but for high-volume production, the material savings typically pay back within 3–6 months. Valve-gated hot runners provide the cleanest gate vestige, essential for cosmetic surfaces.

Cooling System: Cycle Time Is Money

Cooling typically accounts for 60–70% of the injection molding cycle. Every second saved on cooling directly increases production output. Conformal cooling channels — 3D-printed or machined to follow the exact contour of the cavity — can reduce cycle time by 25–40% compared to conventional straight drilled channels. The technology is particularly valuable for parts with complex geometry or deep cores where conventional cooling cannot reach.

Mold Steel Comparison

TSTAR Mold designs and manufactures injection molds from single-cavity prototypes to multi-cavity high-volume production tools. In-house CNC machining, EDM, and polishing. Full engineering support from part design review through mold qualification and production launch.
