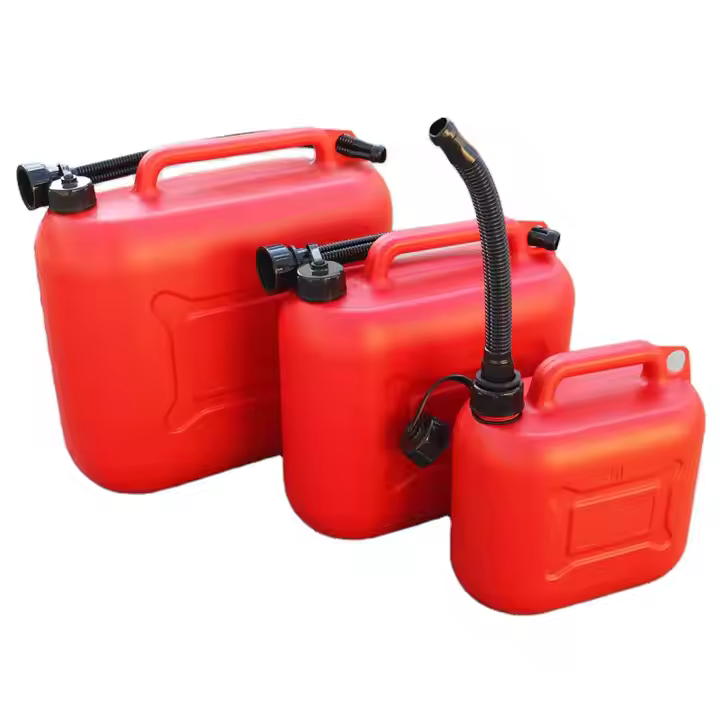

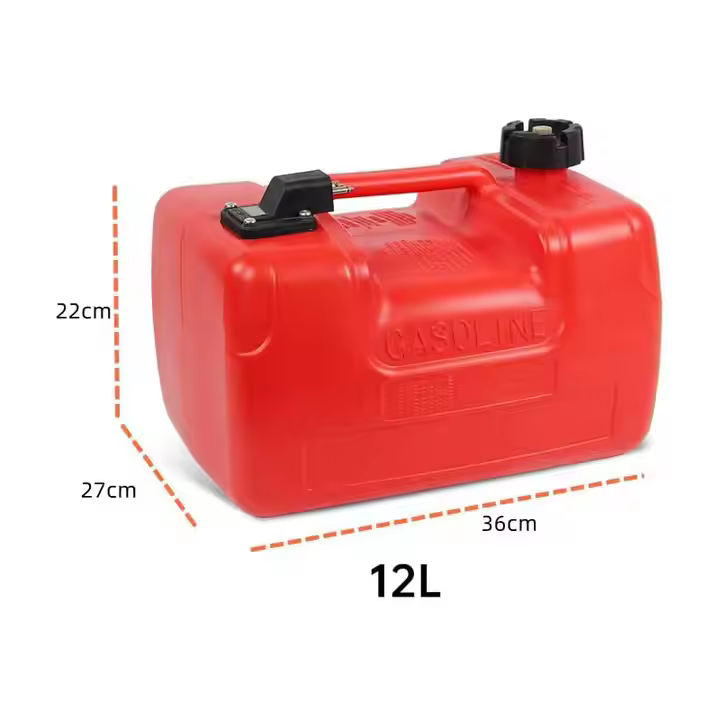

Plastic Oil Barrel Molds

With the rapid development of the global petrochemical industry, plastic oil barrels—as essential liquid packaging containers—have seen growing demand in lubricants, edible oils, and chemical raw material sectors. As the core equipment for barrel production, the technical capabilities and manufacturing quality of plastic oil barrel molds directly determine product performance and production efficiency. This article systematically analyzes the current technological advancements and future trends in oil barrel molds from perspectives including design, manufacturing processes, material selection, and market dynamics.

Industry Status of Plastic Oil Barrel Molds

1. Market Demand Drives Growth
   According to the 2023 Global Packaging Industry Report, annual production of plastic oil barrels exceeds 120 million units, with China accounting for over 65% of the global market share. Demand from automotive aftermarkets for lubricant containers, rigid requirements for edible oil packaging in the food industry, and reliance on corrosion-resistant solutions in the chemical sector collectively fuel the expansion of the oil barrel mold market.
2. Technological Advancements Accelerate
   Traditional mold manufacturing relied on manual expertise, whereas modern enterprises now adopt CAD/CAE/CAM integrated design systems. Combined with mold flow analysis software (e.g., Moldflow), these tools optimize mold structures, reducing production cycles by 30% and increasing yield rates to over 98%. High-precision CNC machining centers and electrical discharge machining (EDM) technologies further enhance surface finish quality of mold cavities.

Core Technologies: Materials and Processes

1. Material Selection Criteria
   Plastic oil barrel molds must withstand high-temperature, high-pressure environments, necessitating mold steels with high hardness, corrosion resistance, and thermal stability. Key materials include:
   • Pre-hardened Mold Steels (e.g., P20, 718H): Suitable for small-to-medium molds, requiring no post-machining heat treatment.
   • Corrosion-Resistant Steels (e.g., S136, H13): Used for chemical barrels containing acidic substances.
   • Beryllium Copper Alloys: Applied in rapid cooling components with thermal conductivity up to 105 W/m·K.
2. Precision Blanking Mold Production:Laser cutting machine achieves ​0.3mm ultra-narrow blade gap control, ideal for micro-hole arrays in electronics connector molds. A mobile phone metal frame mold case study showed that laser cutting reduced burr height from 0.15mm to 0.02mm, boosting yield from 82% to 98%
3. Differentiated Process Design
   • Injection Molding Molds: Ideal for barrels with complex structures (e.g., threaded necks, reinforcing ribs), requiring multi-slide mechanisms and high-pressure injection systems.
   • Blow Molding Molds: Dominant for seamless hollow barrels, featuring precision cavities and air channel systems.
   • Rotational Molding Molds: Used for oversized barrels (e.g., 200L industrial drums), with simpler structures but longer cycle times.

our Key Design Principles

1. Structural Optimization
   • Parting lines must avoid weld lines affecting barrel strength.
   • Cavity wall thickness tolerance controlled within ±0.05mm to prevent shrinkage.
   • Zone-specific cooling systems limit temperature variation to ≤5°C.
2. Ejection Mechanism Innovations
   • Internal thread demolding requires rotating ejectors or collapsible cores.
   • Pneumatic-assisted ejection minimizes pin marks for superior surface quality.
3. Surface Treatment Techniques
   • Nitriding (surface hardness ≥HV 1000) extends mold lifespan.
   • Mirror polishing (Ra ≤0.1μm) reduces polymer flow resistance.
4. Smart Function Integration
   • Embedded pressure sensors monitor real-time cavity pressure.
   • IoT modules enable remote mold diagnostics.

Market Trends and Challenges

1. Green Manufacturing Initiatives
   Bio-based plastics (e.g., PLA) demand molds compatible with new material properties. EU Plastic Tax regulations drive demand for reusable oil barrel molds.
2. Lightweighting Breakthroughs
   Topology optimization reduces barrel wall thickness from 2.5mm to 1.8mm, necessitating microcellular foaming injection molds.
3. Competitive Landscape
   Global leaders like Germany’s HASCO and Japan’s FUTABA dominate high-end markets. Chinese manufacturers leverage modular designs to lower costs and achieve import substitution.

Technical Challenges and Strategies

1. Key Bottlenecks
   • Layer adhesion control in multi-layer co-extrusion blow molds.
   • Precision requirements for microcellular foaming molds.
2. Development Pathways
   • Industry-academia collaboration on AI-driven adaptive compensation systems.
   • Adoption of 3D-printed conformal cooling channels to cut cooling time by 40%.

Conclusion

The evolution of plastic oil barrel molds represents a synergy between precision manufacturing and material science innovation. Driven by smart manufacturing and sustainability, future advancements will require breakthroughs in digital design, specialized materials, and eco-friendly processes to meet global demand for high-performance barrels. With technological accumulation and supply chain integration, China’s mold industry is poised to compete in high-end markets, potentially achieving disruptive innovation in the global arena.
